3 Way Vise

3 Way Vise
Enlargement

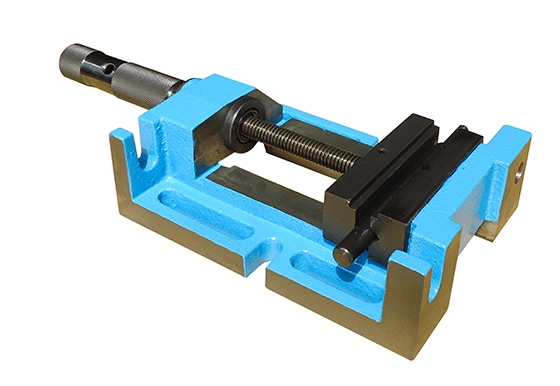

Product Name : 3 Way Vise
Product Model : GS107

Q'ty :
Additional files :



    Product Character



    • 3 dimension processed surfaces are applicable for clamping work piece on drill press machine & milling machine
    • Designed with solid structure, main body is made of FCD45, assemble a pair of heat treated steel jaws with hardness HRc 45°~50°
    • Jaw pair and handle are surface treated by black oxide finish
    • Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
    • The verticality tolerance between each 2 surfaces of 3 dimensions are controlled in 0.100 mm



    proimages/Drill_Press_Vise/GS102_2_b.jpg

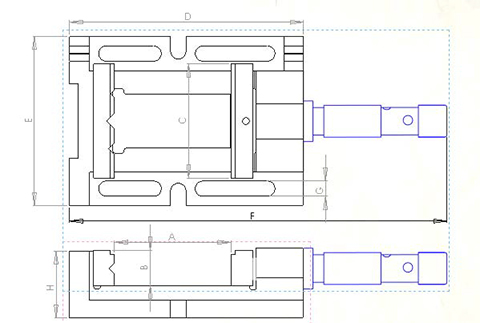

    Unit: mm

    Order No. A B C D E F G H Max. clamping force ( ton ) Weight
    107-4 101 32 104 209 156 340 12 62 1.6 5.9
