Manual Ratchet Pipe Threader
Enlargement
Product Name : Manual Ratchet Pipe Threader
Product Model : GS-111

Q'ty :
Additional files :
GS111-_pipe_threader.pdf



    Product Character
    • Purpose: Hand tool for threading on the iron pipe.
    • Easy and light operating for pipe threading processing
    • Main body is made of ductile casting iron FCD 45
    • threading die is made of high carbon steel, heat treated as HRc 57±2°
    • Various pipe thread spec. of the die chaser are provided,
      BSPT: 1/8” 1/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/2” 2”
      NPT: 1/8” 1/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/2” 2”

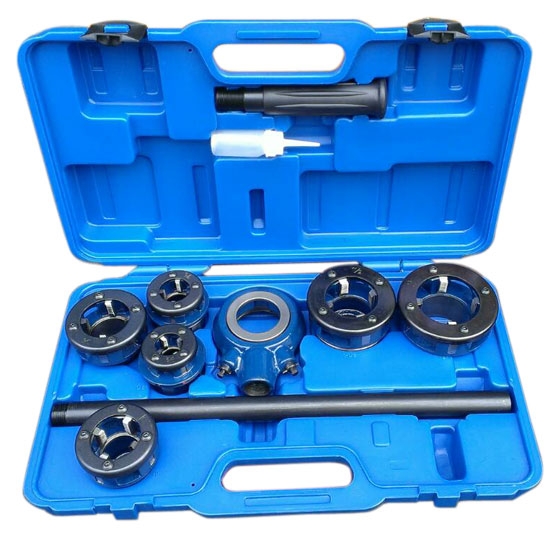

    • Whole kit is packed in blow case
    • Product package:
      4 drop heads package
      6 drop heads package



    Order no. Description
    111-PT-4P Assembly of main body, handle set, 4 x PT die head sets, blow case
    111-PT-6P Assembly of main body, handle set, 6 x PT die head sets, blow case
    111-NPT-4P Assembly of main body, handle set, 4 x NPT die head sets, blow case
    111-NPT-6P Assembly of main body, handle set,6 x NPT die head sets, blow case
    111-1/4PT+H BSPT 1/4" threader die head with chaser pair
    111-3/8PT+H BSPT 3/8" threader die  head with chaser pair
    111-1/2PT+H BSPT 1/2" threader die  head with chaser pair
    111-3/4PT+H BSPT 3/4" threader die  head with chaser pair
    111-1PT+H BSPT 1" threader die  head with chaser pair
    111-11/4PT+H BSPT 1-1/4" threader die  head with chaser pair
    111-11/2PT+H BSPT 1-1/2" threader die  head with chaser pair
    111-2PT+H BSPT 2" threader die  head with chaser pair
    111-1/4NPT+H NPT 1/4" threader die head with chaser pair
    111-3/8NPT+H NPT 3/8" threader die  head with chaser pair
    111-1/2NPT+H NPT 1/2" threader die  head with chaser pair
    111-3/4NPT+H NPT 3/4" threader die  head with chaser pair
    111-1NPT+H NPT 1" threader die  head with chaser pair
    111-11/4NPT+H NPT 1-1/4" threader die  head with chaser pair
    111-11/2NPT+H NPT 1-1/2" threader die  head with chaser pair
    111-2NPT+H NPT 2" threader die  head with chaser pair
    111-1/4PT BSPT 1/4" threader  chaser pair
    111-3/8PT BSPT 3/8" threader chaser pair
    111-1/2PT BSPT 1/2" threader chaser pair
    111-3/4PT BSPT 3/4" threader chaser pair
    111-1PT BSPT 1" threader chaser pair
    111-11/4PT BSPT 1-1/4" threader chaser pair
    111-11/2PT BSPT 1-1/2" threader chaser pair
    111-2PT BSPT 2" threader chaser pair
    111-1/4NPT NPT 1/4" threader chaser pair
    111-3/8NPT NPT 3/8" threader chaser pair
    111-1/2NPT NPT 1/2" threader chaser pair
    111-3/4NPT NPT 3/4" threader chaser pair
    111-1NPT NPT 1" threader chaser pair
    111-11/4NPT NPT 1-1/4" threader chaser pair
    111-11/2NPT NPT 1-1/2" threader chaser pair
    111-2NPT NPT 2" threader chaser pair
