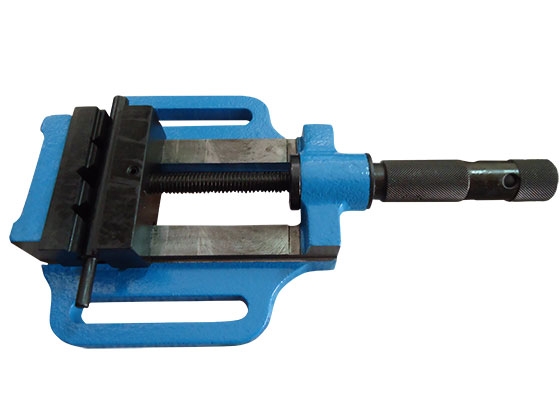

Super Steel Jaw Vise
Enlargement Product Name : Super Steel Jaw Vise
Product Model : GS101
Additional files :
Product Character
- Suitable for clamping work piece on drill press machine & millling machine
- Designed with solid strucure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRc 45°~50°
- Jaw pair and handle are surface treated by black oxide finish
- Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
- All sliding suraces of each part, base face & jaw pair are grinded for assuring the flatness as well as the verticalness are controlled in 0.05/100 m

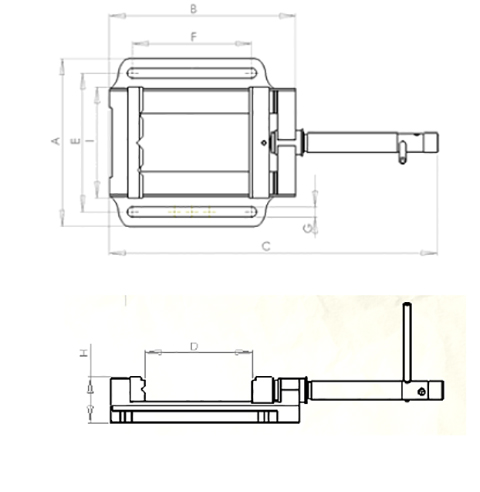

Unit: mm
| Order No. | A | B | C | D(min.) | E | F | G | H | I | Max. clamping force ( ton ) | weight |
| 101-3 | 167 | 165 | 290 | 85 | 135 | 81 | 12 | 50 | 84 | 1.5 | 3.5 |
| 101-4 | 202 | 203 | 343 | 100 | 162 | 101 | 13 | 60 | 104 | 1.6 | 5.7 |
| 101-5 | 226 | 230 | 390 | 125 | 190 | 130 | 13.5 | 67 | 132 | 1.75 | 8.2 |
| 101-6 | 254 | 266 | 450 | 152 | 214 | 154 | 18 | 75 | 156 | 1.75 | 11.6 |
