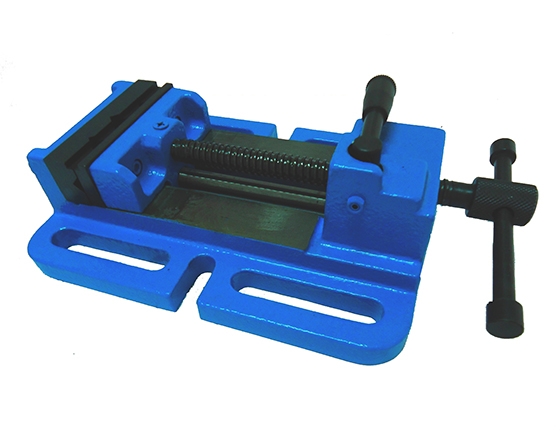

Super Quick Jaw Vise
Enlargement Product Name : Super Quick Jaw Vise
Product Model : GS103G
Additional files :
Product Character
- Suitable for clamping work piece on drill press machine & millling machine
- Quick motion machanism design makes clamping and releasing work piece promptly by sweveling the reversing lever.
- Slide bar design makes work piece is firmly fixed by jaw pair without any inclined situation of the jaws
- Designed with solid strucure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRc 45°~50°
- Jaw pair and handle are surface treated by black oxide finish
- Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
- All sliding suraces of each part, base face & jaw pair are grinded for assuring the flatness as well as the verticalness are controlled in 0.05/100 mm
.jpg "proimages/Drill_Press_Vise/GS102_2_b.jpg")
| Unit: mm | |||||||||||
| Order No. | A | B | C | D | E | F | G | H | I | J(Min.) | Max. clamping force ( ton ) |
| 103G-3 | 155 | 83 | 213 | 66.5 | 345 | 13.5 | 15 | 60 | 32 | 78 | 0.8 |
| 103G-4 | 180 | 104 | 235 | 66.5 | 390 | 14 | 16.5 | 73 | 32 | 105 | 1.0 |
| 103G-6 | 240 | 156 | 310 | 85 | 530 | 17 | 18 | 93 | 38 | 152 | 1.8 |
