52(58)PCS万能夹治具组合
点小图放大图
产品名称 : 52(58)PCS万能夹治具组合
产品型号 : CK-58pcs

数量 :



    产品介紹



    • 用途: 在各种机械工作台面上,用来固定挟持模具、治具板
    • 材质；S45C，表面染黑皮膜处理
    • 热处理硬度：各种零配件热处理后硬度为 HRC32±5。
    • 产品组合: 双头牙24支、T型螺帽6只、法兰螺帽6只、连接螺帽4 只、齿型压板6只、三角级枕6组(12只), 红色塑料架
    • 产品规格:英制 3/8”/1/2”/5/8”； 公制 M8/ M10/M12 /M14/M16
      52-PC set

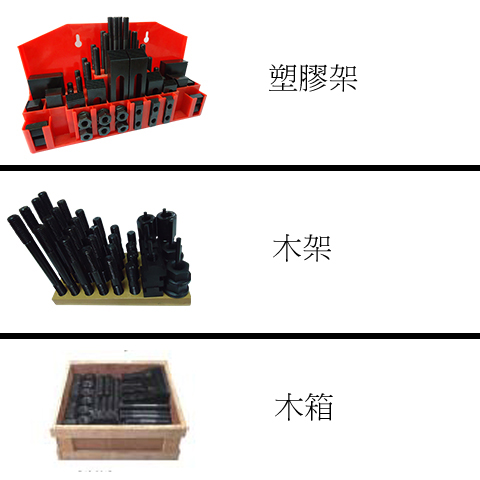

    包装方式 plastic frame/woodentray/wooden case
    双头牙螺杆 24 pcs
    T型螺帽 6 pcs
    法兰螺帽 6 pcs
    连接螺帽 4 pcs
    齿型压板 6 pcs
    三角级枕 6 sets(12 pcs)





    Order No. ofinch size 52-PC set A B(mm) C(mm) D(mm) E(mm) F(mm) T(mm) Packing
    CK-1031P 3/8"-16 10.8 12 5.5 17.5 22 25 Plastic frame
    CK-1032P 3/8"-16 11.5 12 6.8 22 22 25 Plastic frame
    CK-1033P 3/8"-16 13.8 15.9 8 22 28 25 Plastic frame
    CK-104A(1/2-121)P 1/2"-12 13.8 15.9 8 22 28 25 Plastic frame
    CK-104A(1/2-122)P 1/2"-12 15.5 16 8 25 28 25 Plastic frame
    CK-104A(1/2-123)P 1/2"-12 17.5 19 11 28 31 25 Plastic frame
    CK-104A(1/2-131)P 1/2"-13UNC 13.8 15.9 8 22 28 25 Plastic frame
    CK-104A(1/2-132)P 1/2"-13UNC 15.5 16 8 25 28 25 Plastic frame
    CK-104A(1/2-133)P 1/2"-13UNC 17.5 19 11 28 31 25 Plastic frame
    CK-104B(1/2-121)P 1/2"-12 13.8 15.9 8 22 28 32 Plastic frame
    CK-104B(1/2-122)P 1/2"-12 15.5 16 8 25 28 32 Plastic frame
    CK-104B(1/2-123)P 1/2"-12 17.5 19 11 28 31 32 Plastic frame
    CK-104B(1/2-131)P 1/2"-13UNC 13.8 15.9 8 22 28 32 Plastic frame
    CK-104B(1/2-132)P 1/2"-13UNC 15.5 16 8 25 28 32 Plastic frame
    CK-104B(1/2-133)P 1/2"-13UNC 17.5 19 11 28 31 32 Plastic frame
    CK-105A1P 5/8"-11 17.5 19 11 22 31 25 Plastic frame
    CK-105A2P 5/8"-11 18.6 19 11.9 25 31 25 Plastic frame
    CK-105A3P 5/8"-11 20.2 25 14 28 38 25 Plastic frame
    CK-105A1W 5/8"-11 17.5 19 11 28 31 25 Wooden tray
    CK-105A2W 5/8"-11 18.6 19 11.9 31.8 31 25 Wooden tray
    CK-105A3W 5/8"-11 20.2 25 14 32 38 25 Wooden tray
    CK-105B1P 5/8"-11 17.5 19 11 28 31 32 Plastic frame
    CK-105B2P 5/8"-11 18.6 19 11.9 31.8 31 32 Plastic frame
    CK-105B3P 5/8"-11 20.2 25 14 32 38 32 Plastic frame
    CK-1061W 3/4"-10 20.2 25 14 32 38 38 Wooden tray
    CK-1062W 3/4"-10 21.7 28 14 35 38 38 Wooden tray
    CK-1063W 3/4"-10 25 25 15.5 40 44.5 38 Wooden tray
    CK-107C 7/8"-9 25 25 15.5 40 38 50 Wooden case
    CK-108C 1"-8 27 38 17.5 40 49 50 Wooden case



    Order No. of metric size 52-PC set A B(mm) C(mm) D(mm) E(mm) F(mm) T(mm) Packing
    CK-8P M8X1.25 9.7 12 6 16 20 25 Plastic frame
    CK-10P M10X1.5 11.5 12 6.8 17.5 22 25 Plastic frame
    CK-12A1P M12X1.75 13.8 15.9 8 22 28 25 Plastic frame
    CK-12A2P M12X1.75 15.5 16 8 25 28 25 Plastic frame
    CK-12B1P M12X1.75 13.8 15.9 8 22 28 32 Plastic frame
    CK-12B2P M12X1.75 15.5 16 8 25 28 32 Plastic frame
    CK-14AP M14X2.0 15.5 16 8 25 28 25 Plastic frame
    CK-14BP M14X2.0 15.5 16 8 25 28 32 Plastic frame
    CK-16AP M16X2.0 17.5 19 11 28 31 25 Plastic frame
    CK-16BP M16X2.0 17.5 19 11 28 31 32 Plastic frame
    CK-18W M18X2.5 19.5 24 12 32 38 38 Wooden tray
    CK-20W M20X2.5 21.7 28 14 35 38 38 Wooden tray
    CK-24C M24X3.0 27.5 36 18 44 49 50 Wooden case
